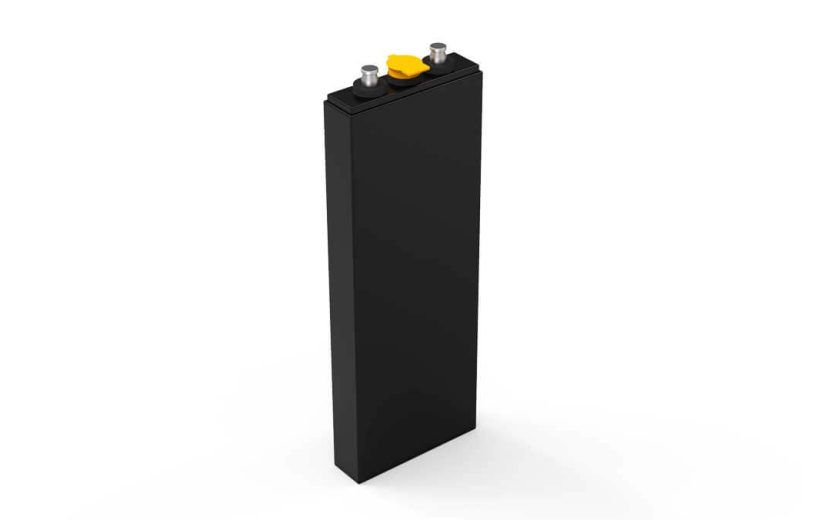

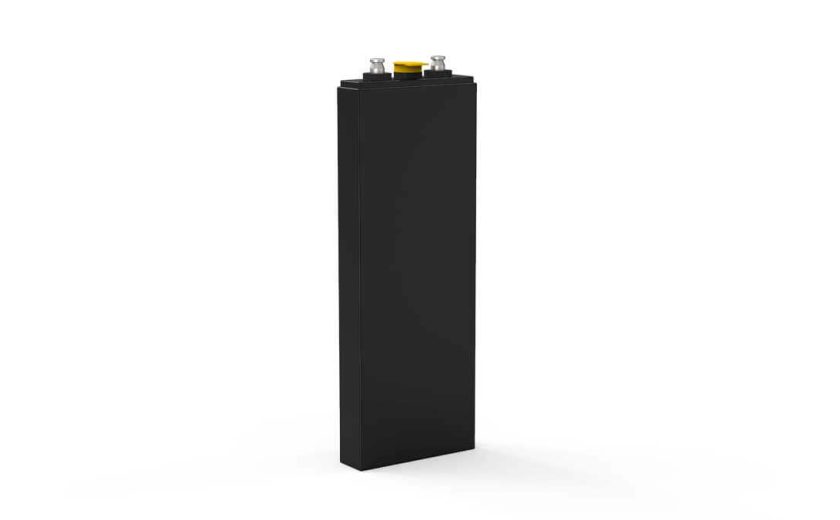

RTRB Traction battery

RTRB Traction battery is mainly used as DC for portage truck, forklift in warehouses and docks, and can also be used as correlative power supply in other aspects.

Traction cells are mainly used in heavy industrial electrical applications, such as: electric forklifts, electric trucks, large industrial cleaning machines, tower wagons etc.

The cells are composed of positive tubular plates and negative grid plates, which guarantee a higher capacity and longer life than the conventional batteries with flat plates. The positive and negative plates are separated by a micro-porous separator in order to avoid mutual contact and short circuits. The plates are packed in a polypropylene container that is resistant to vibrations. At the bottom of this container, there is a rest room to collect the precipitate and thus to prevent short circuits. On top of the cells, there is a lid to prevent the coming-up of the separators by vibrations and shocks and causing a short circuit. The lid also protects against acid and protects the plates and the separators during filling. The cells are standard equipped with manual filler caps and a little basket which simplifies the refilling (refill up to the bottom of the basket).

Description
  1. Robust, flooded tubular technology.
  2. Highest standards of design, materials and workmanship.
  3. Outstanding deep cycling capacity & reliability.
  4. Spines of antimonial lead filled with lead oxide and less maintenance.
  5. Gas circulation system, through gas circulate to mix round the electrolyte, avoid electrolyte stratification.
  1. DC power source for electric vehicles which widely used in airport, railway station, seaport and mining etc.
  2. Clean pollution-free DC power source
  3. Public communication, sports, and entertainment etc.

Technical Sheet

ModelRated voltageCapacityDimensions (mm)Weight (kg)Discharge Rate 5h Final Votage 1.70VDischarge Rate 0.5h Final Votage 1.50V
VAhLWHTHNo AcidWith AcidCurrent (A)Capacity (AH)Current (A)Capacity (AH)
RTRB1-1102110471983393716.17.62211011055
RTRB2-1652165651983393718.410.83316516582.5
RTRB3-22022208319833937110.813.944220220110
RTRB4-275227510119833937113.11755275275137.5
RTRB5-330233011919833937115.420.166330330165
RTRB6-385238513719833937117.823.277385385192.5
RTRB7-440244015519833937120.126.488440440220
RTRB8-495249517319833937122.529.599495495247.5
RTRB9-550255019119833937125.333.1110550550275
RTRB10-1402140471984044367.39.32814014070
RTRB11-21022106519840443610.213.242210210105
RTRB12-28022808319840443613.117.156280280140
RTRB13-350235010119840443615.920.970350350175
RTRB14-420242011919840443618.824.884420420210
RTRB15-490249013719840443621.728.798490490245
RTRB16-560256015519840443624.632.5112560560280
RTRB17-63026301731984044362836.9126630630315
RTRB18-700270019119840443630.840.8140700700350
RTRB19-1602160471984695018.210.53216016080
RTRB20-24022406519846950111.414.848240240120
RTRB21-32023208319846950114.519.164320320160
RTRB22-400240010119846950117.723.480400400200
RTRB23-480248011919846950120.927.796480480240
RTRB24-560256013719846950124.132112560560280
RTRB25-640264015519846950127.236.3128640640320
RTRB26-720272017319846950131.141.3144720720360
RTRB27-800280019119846950134.345.6160800800400
RTRB28-1802180471984695018.611.13618018090
RTRB29-2702270651984695011215.854270270135
RTRB30-36023608319846950115.320.572360360180
RTRB31-450245010119846950118.725.190450450225
RTRB32-540254011919846950122.129.8108540540270
RTRB33-630263013719846950125.534.4126630630315
RTRB34-720272015519846950128.939.1144720720360
RTRB35-810281017319846950132.844.3162810810405
RTRB36-900290019119846950136.249180900900450
RTRB37-20022004719856960110.21340200200100
RTRB38-30023006519856960114.318.560300300150
RTRB39-40024008319856960118.42480400400200
RTRB40-500250010119856960122.429.5100500500250
RTRB41-600260011919856960126.535120600600300
RTRB42-700270013719856960130.640.5140700700350
RTRB43-800280015519856960134.646160800800400
RTRB44-900290017319856960139.352.1180900900450
RTRB45-10002100019119856960143.357.520010001000500
RTRB46-36023606519872075217.322.472360360180
RTRB47-48024808319872075222.128.996480480240
RTRB48-600260010119872075226.935.4120600600300
RTRB49-720272011919872075231.842144720720360
RTRB50-840284013719872075236.648.5168840840420
RTRB51-960296015519872075242.456192960960480
RTRB52-10802108017319872075247.262.621610801080540
RTRB53-12002120019119872075252.169.124012001200600
RTRB54-28022804719872075213.217.156280280140
RTRB55-42024206519872075218.524.484420420210
RTRB56-56025608319872075223.831.8112560560280
RTRB57-700270010119872075229.139.1140700700350
RTRB58-840284011919872075234.446.4168840840420
RTRB59-980298013719872075239.853.7196980980490
RTRB60-11202112015519872075245.16122411201120560
RTRB61-12602126017319872075250.468.325212601260630
RTRB62-14002140019119872075255.775.628014001400700
RTRB63-30023004719872075213.217.560300300150
RTRB64-45024506519872075218.524.990450450225
RTRB65-60026008319872075223.932.4120600600300
RTRB66-750275010119872075229.239.8150750750375
RTRB67-900290011919872075234.547.3180900900450
RTRB68-10502105013719872075239.954.821010501050525
RTRB69-12002120015519872075245.862.824012001200600
RTRB70-13502135017319872075251.270.327013501350675
RTRB71-15002150019119872075256.577.830015001500750
